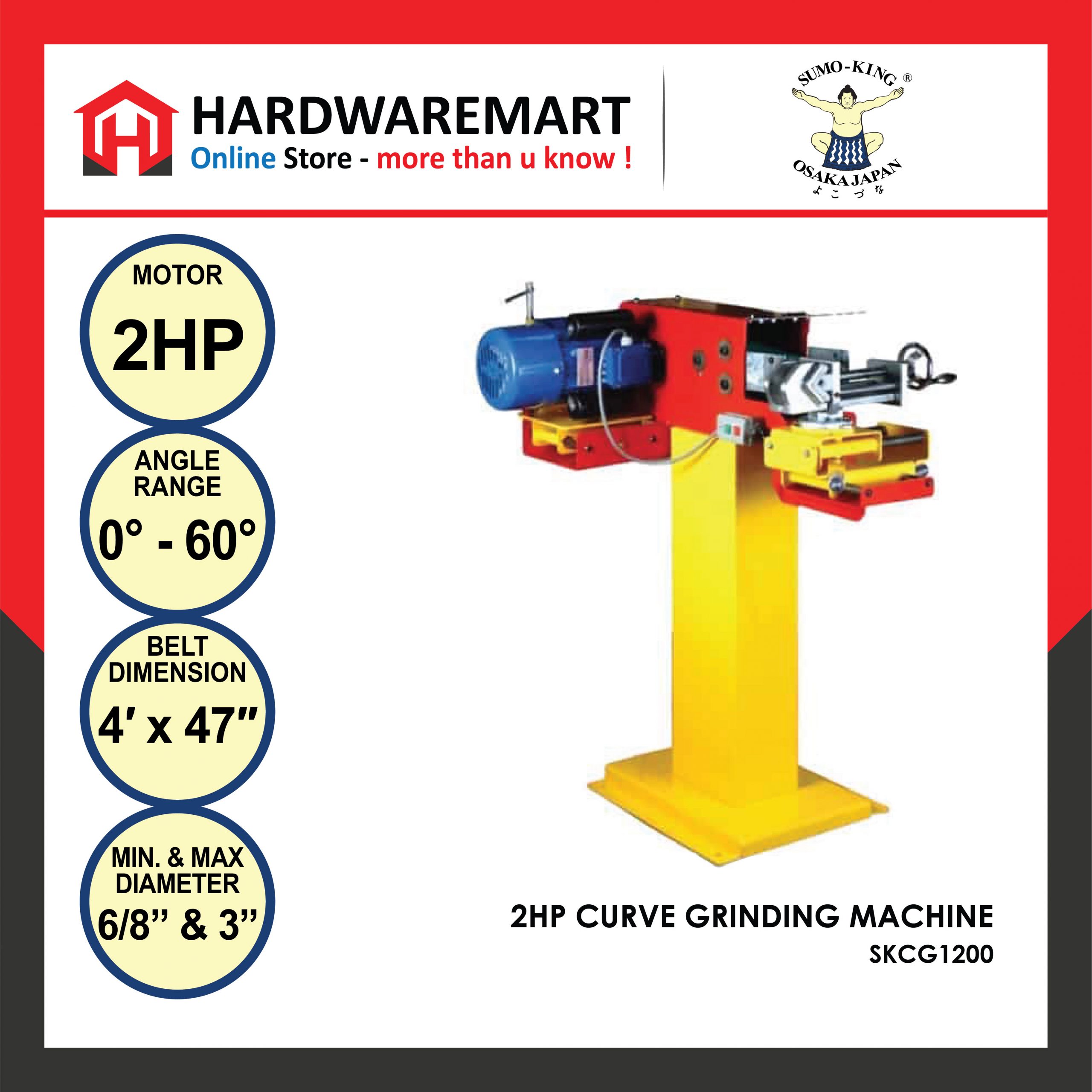

SUMO KING SKCG1200 2HP CURVE GRINDING MACHINE2

Description

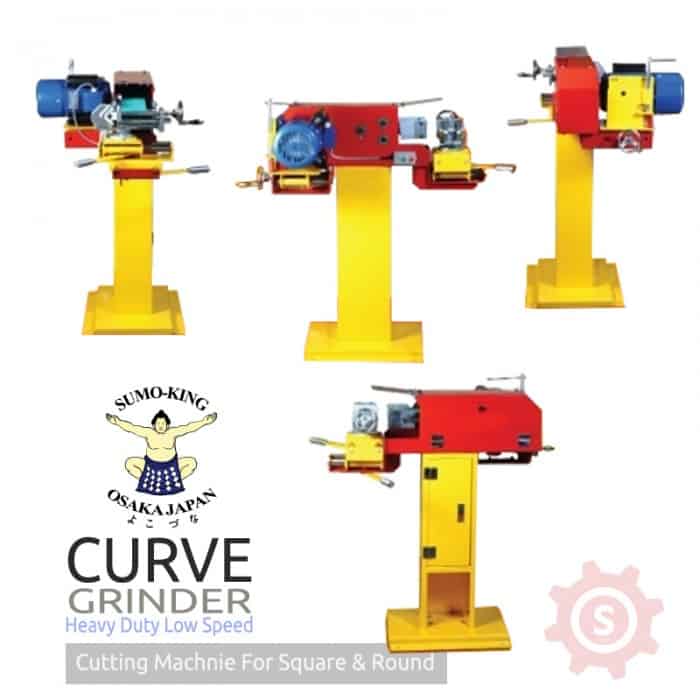

Sumo King Curve Grinder Square / Round MachineSKCG1200 is an ergonomiaccly designed curve cutting machine for grinding square and round at almost any angle.

Materials to be grinded include metal especially stainless steel,plastic and wood.Precise and fast grinding operation to increase production outputs at reasonably low cost.

• Hand Railing
• Race-car Frames & Rols Cages
• Furniture Frames
• Fences & Gates
• Marine Bow Rails & Arces
• Stainless Steel for Plumbing, Restaurant & Dairy

SPECIFICATIONS

• Model : SKCG1200
• Motor : 240V, 2Hp, 2Pole
• Angle Range : 0 to 60 Degree
• Belt Dimension : 4′ x 47″
• Min. & Max Diameter : 6/8” Ø3”
• Tube Grinding Roller : 7 sets: 3/4”, 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”
• M/Steel Roller :  ¾” (OD ø19mm), 1″ (OD ø25mm), 1¼” (OD ø32mm), 1½” (OD ø38mm), 2″ (OD ø50mm), 2½” (OD ø63mm), 3″ (OD ø76mm),
• Grinding Belt : 1 pieces (4” x 47”)
• Weight : 88 Kg
• Machine Dimension : 600 X 800 X 960 mm
