LEO AQM75 PERIPHERAL PUMP Pam Air Rumah Kolam [1 PHASE] (0.75kW/1HP)

Description

FREE: FACE SHIELD (SOFT)

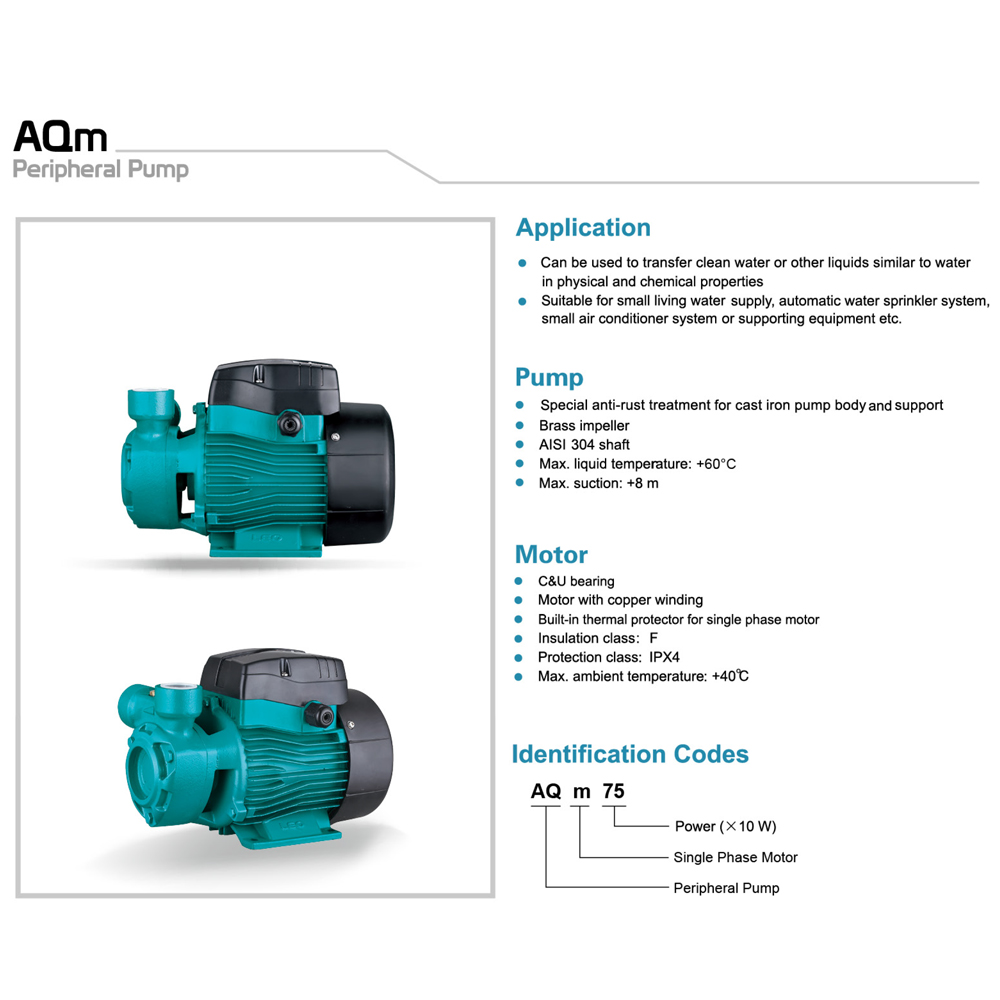

APPLICATION

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

PUMP

• Special anti-rust treatment for cast iron pump body and support
• Anti-block system for impeller
• Brass impeller
• AISI 304 shaft
• Max. liquid temperature: +40°C
• Max. suction: +8m

MOTOR

• C&U bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C
• IE 2 motor (AP110, Ap150)

Power: 0.75kW / 1HP
Flow: 5 – 45 L/min
Head: 70m – 5m
Max suction: 8m
Outlet: 1’’ x 1’’
