PUMP:
– Cast iron pump body, support under special anti-rust treatment. With the copper inserts, it solves the impellers clogging problem when starting after the pump has been idle for a long time.
– Bronze impeller with evenly arranged radial time.
– Mechanical seal ceramic-graphite-NBR
– SUS304 fabricated shaft.
– Max. liquid temperature: +60°C
– Max. Suction : 8M
– Self-Priming.
MOTOR:
Motor with copper winding
Single phase motor with build-in thermal protective device.(Auto protection & reset)
Insulation Class : F
Protection Class : IP44
Max. ambient temperature : +40°C

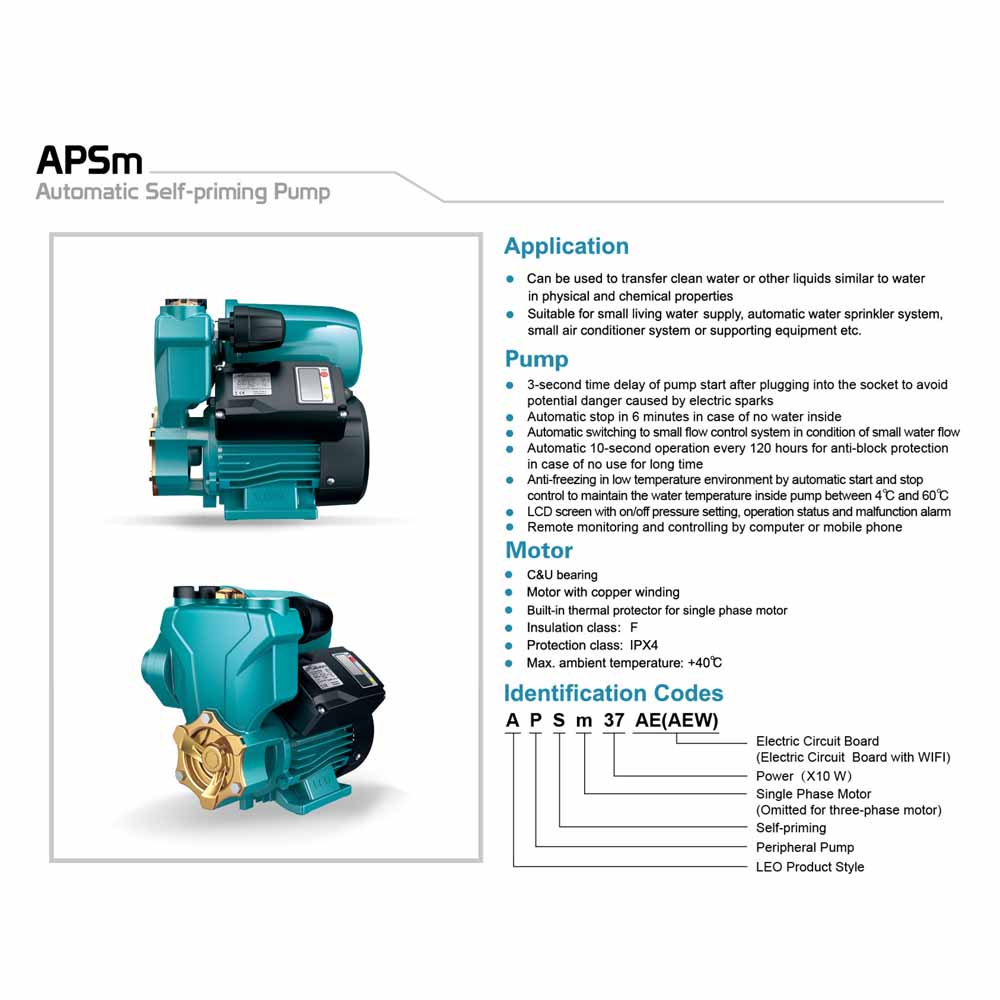

Applications :
Transfer of clean water or other liquids similar to water in physical and chemical properties
Domestic water supply with pressure boosting
Automatic water sprinkler system
Small air conditioning system
Features:
Copper winding
Brass Impeller
Build-in thermal protector
Anti-block system
Anti-rust treatment for wetted parts
AISI 304 fabricated shaft
Cast iron connector
Low voltage operation
Insulation class : F

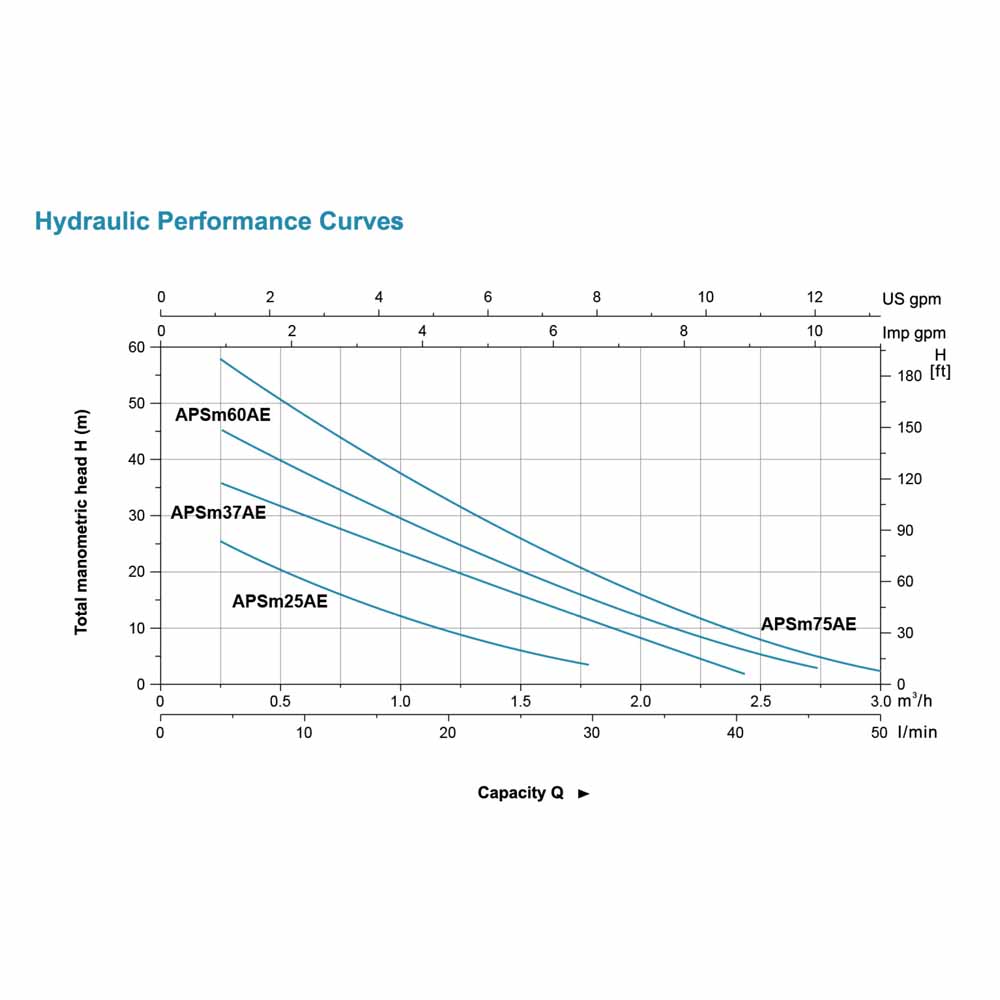

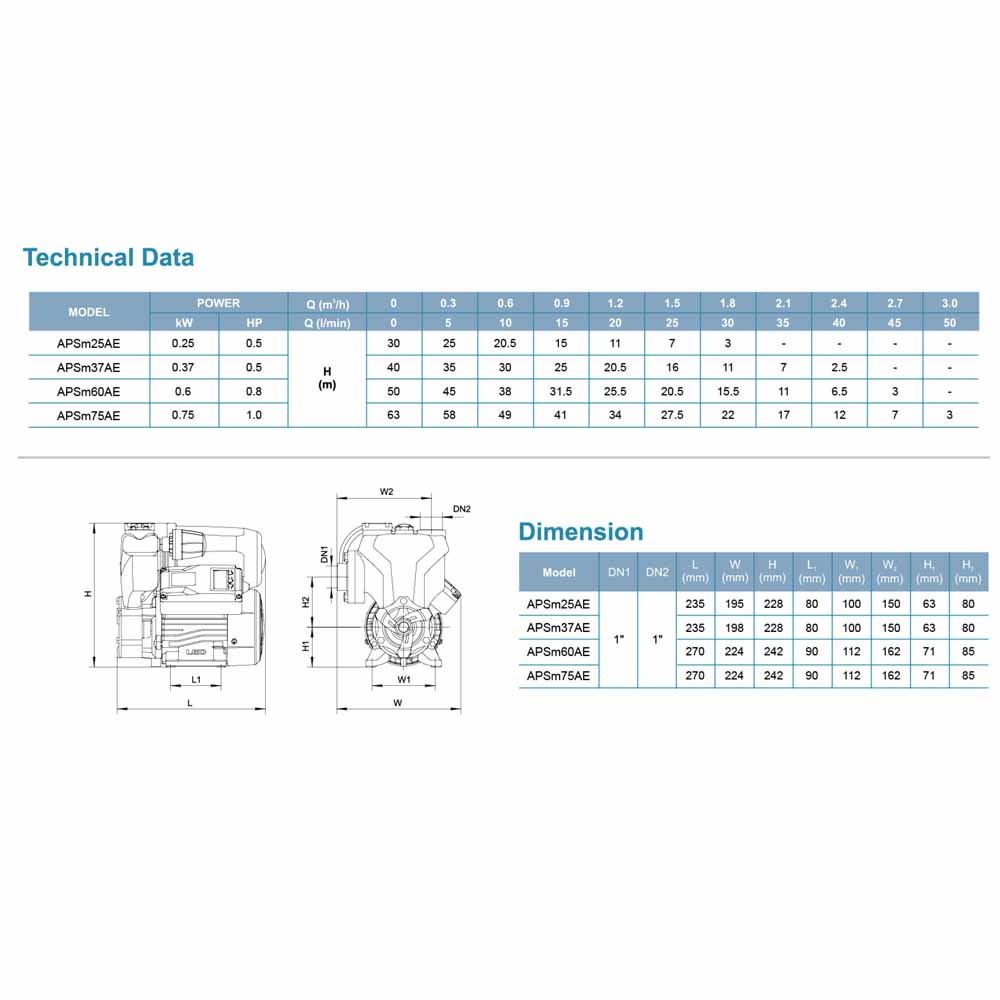

Technical Data :
Brand : Leo Pump
Power : 370W / 0.5HP
Flow : 5-40 (l/min)
Max Head : 35m
Max Suction : 8m
Inlet / Outlet : 25mm x 25mm ( 1″x 1″)
