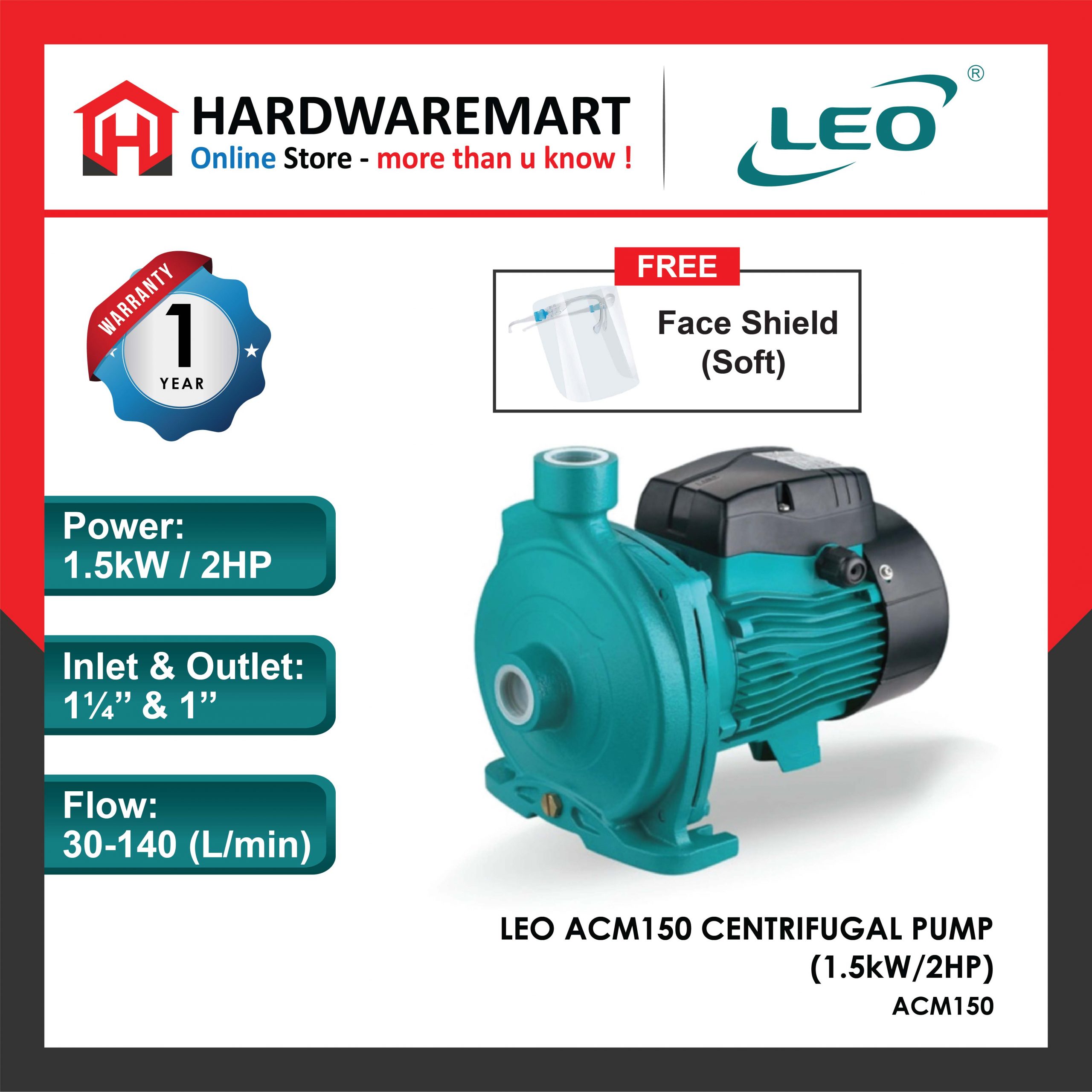

LEO ACM150 CENTRIFUGAL PUMP Pam Air Rumah Kolam [1 PHASE] (1.5kW/2HP)

Description

FREE: FACE SHIELD (SOFT)

LEO SINGLE PHASE ACM150 CENTRIFUGAL PUMP (1.5kW/2HP)

Applications:

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting and cold and hot water, and supporting equipment etc.

Pump

• Cast iron pump body and support under special anti-rust treatment
• AISI 304 shaft
• Max. liquid temperature: +40°C
• Max. suction: +8m

Motor

• C&U bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C

Power: 1.5kW / 2HP
Flow: 30-140 L/min
Head: 46m-22m
Max suction: 8m
Outlet: 1¼’’ & 1’’
