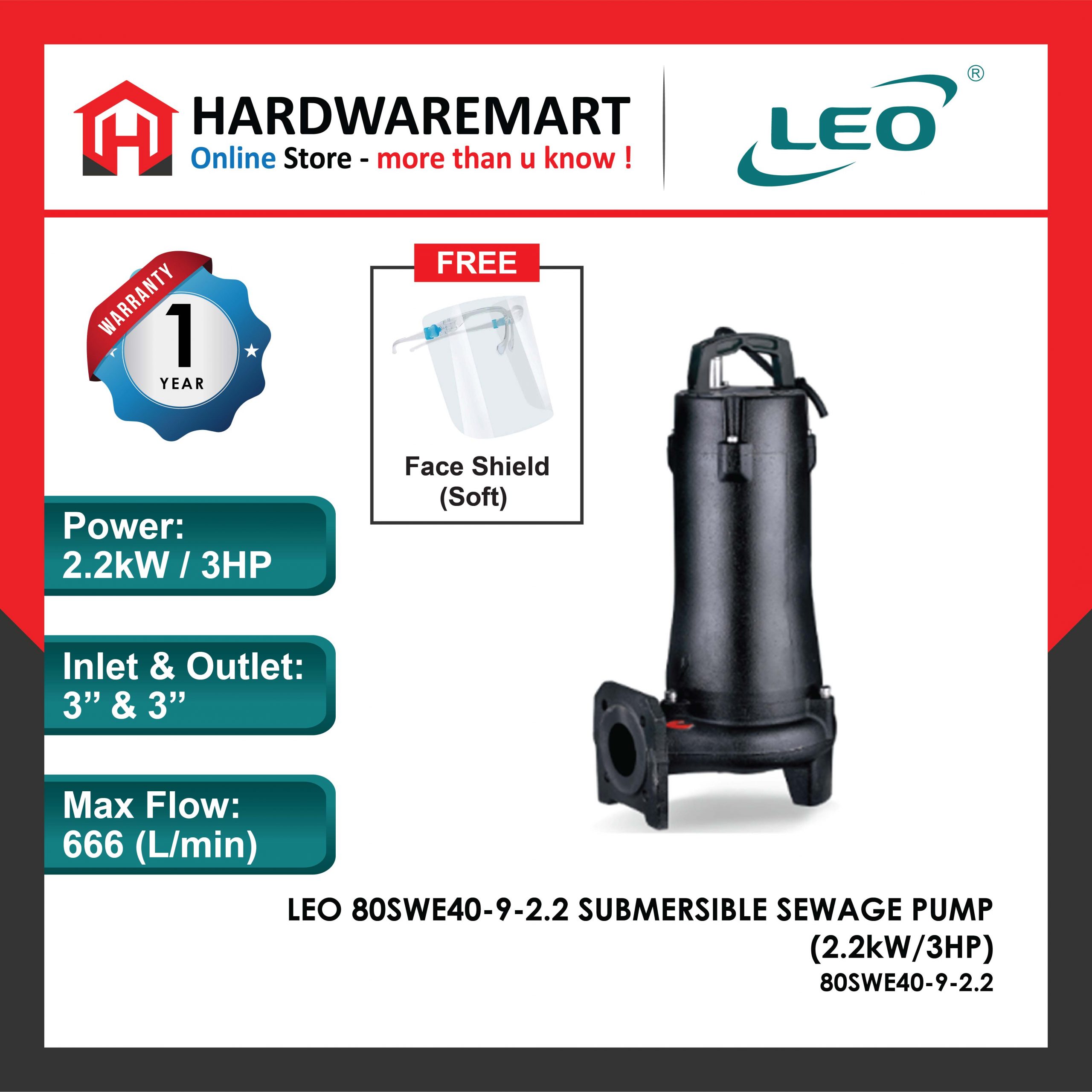

LEO 80SWE40-9-2.2 SUBMERSIBLE SEWAGE PUMP Pam Air Rumah Kolam [3 PHASE] (2.2kW/3HP)

Description

FREE: FACE SHIELD (SOFT)

Applications:

• Drainage of waste water from the attention tank, purifying tank and sewage tank in water treatment plant.
• Drainage of waste water containing fibrous additives from leather factory and food processing factory.
• Sewage management, accumulated water, septic tank, stock farm.
• Pumping sewage form hotels, restaurants, schools and public buildings.

Features

• High efficient and anti-clogging Enclosed Channel impeller design
• Flexible installations with hoses, pipes or quick-coupling systems

Working Conditions

• Liquid temperature: 0 – 40°C
• Max immersion depth: 5m

Motor

• Frequency / Pole number: 50Hz/2
• Insulation class: F
• Protection class: IPX8
• Bearing: Ball type
• Mechanical seal: Double-end mechanical seals

Power: 2.2kW / 3HP
Flow: 666 L/min
Head: 9m
Impeller passage: 30m
Outlet: 3”
