– For water supply from wells or reservoirs – For domestic use, for civil and industrial applications – For garden use and irrigation
Operating conditions
– Maximum fluid temperature up to +50°C – Maximum sand content: 0.25% – Maximum immersion: 80m – Minimum well diameter: 4''
Motor and Pump
– Rewindable motor or full obturated screen motor – Three-phase: 380V-415V/50Hz – Single-phase: 220V-240V/50Hz – Equip with start control box or digital auto-control box – NEMA dimension standards – Curve tolerance according to ISO 9906 – Impeller material: Stainless steel 304

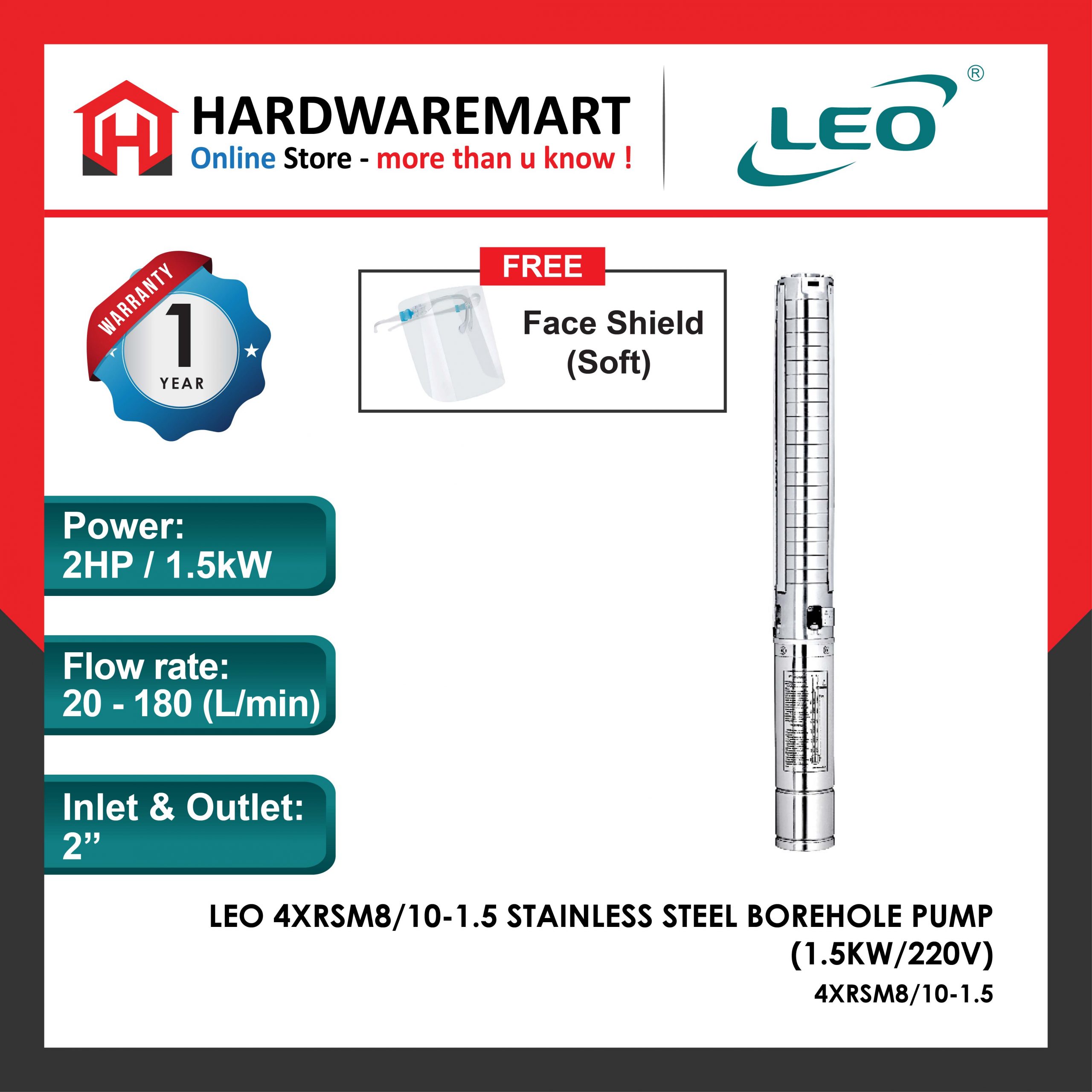

Power: 1.5kW / 2HP Flow: 20-180 L/min Head: 56m-29m Max suction: 80m Outlet: 2’’ Brand: LEO Pump
