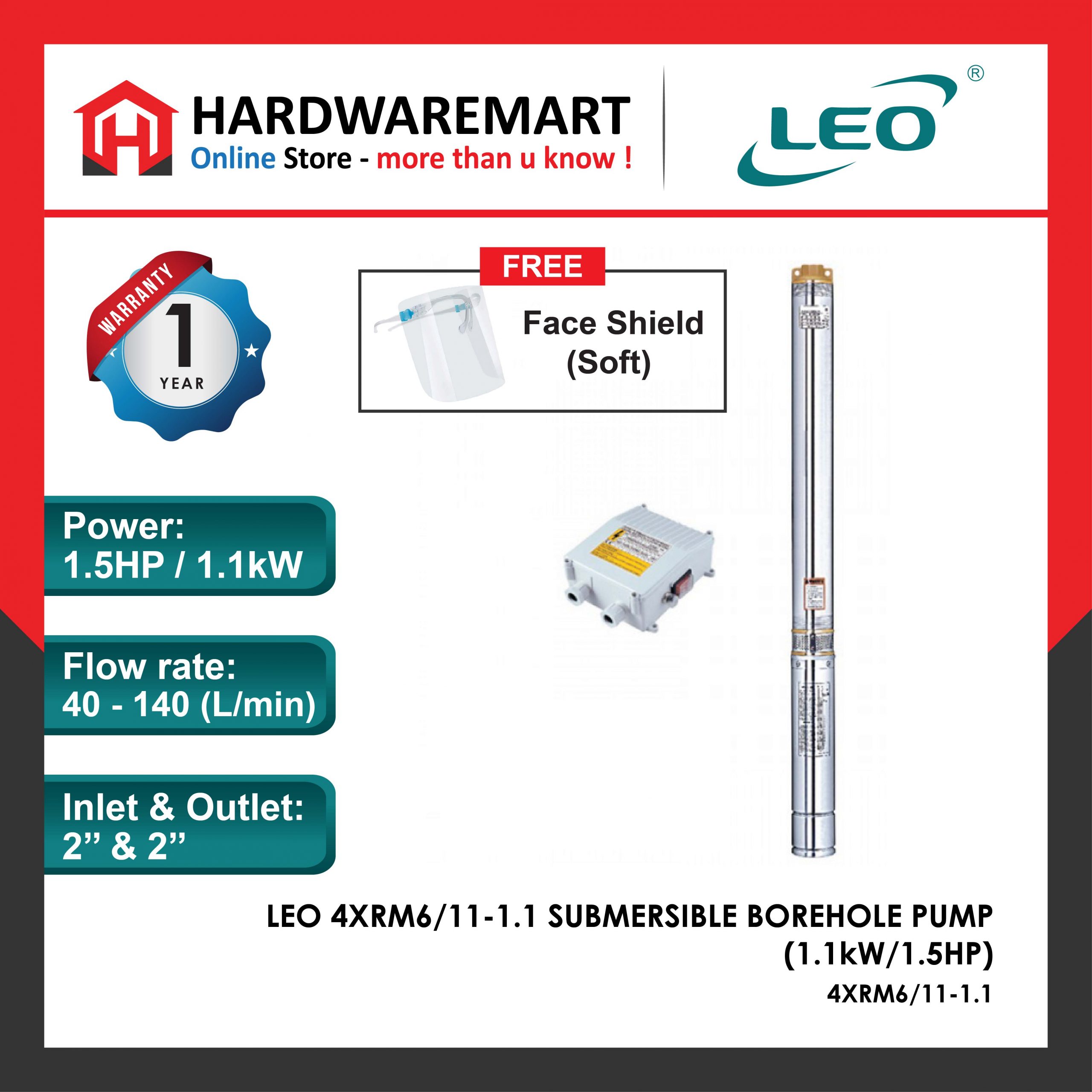

LEO 4XRM6/11-1.1 SUBMERSIBLE BOREHOLE PUMP PLANTATION Pam Air Perladangan [1 PHASE] (1.1kW/1.5HP)

Description

FREE: FACE SHIELD (SOFT)

LEO SINGLE PHASE 4XRM6/11-1.1 SUBMERSIBLE BOREHOLE PUMP (1.1kW/1.5HP)

Applications:

• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation

Operating conditions

• Maximum fluid temperature up to +35°C
• Maximum sand content: 0.25%
• Maximum immersion: 80m
• Minimum well diameter: 3”

Motor and Pump

• Rewindable motor or full obturated screen motor
• Three-phase: 380V-415V/50Hz
• Single-phase: 220V-240V/50Hz
• Pumps are designed by casing stressed
• Curve tolerance according to ISO 9906

Power: 1.1kW / 1.5HP
Flow: 40-140 L/min
Head: 70m-20m
Max suction: 80m
Outlet: 2’’ x 2’’
