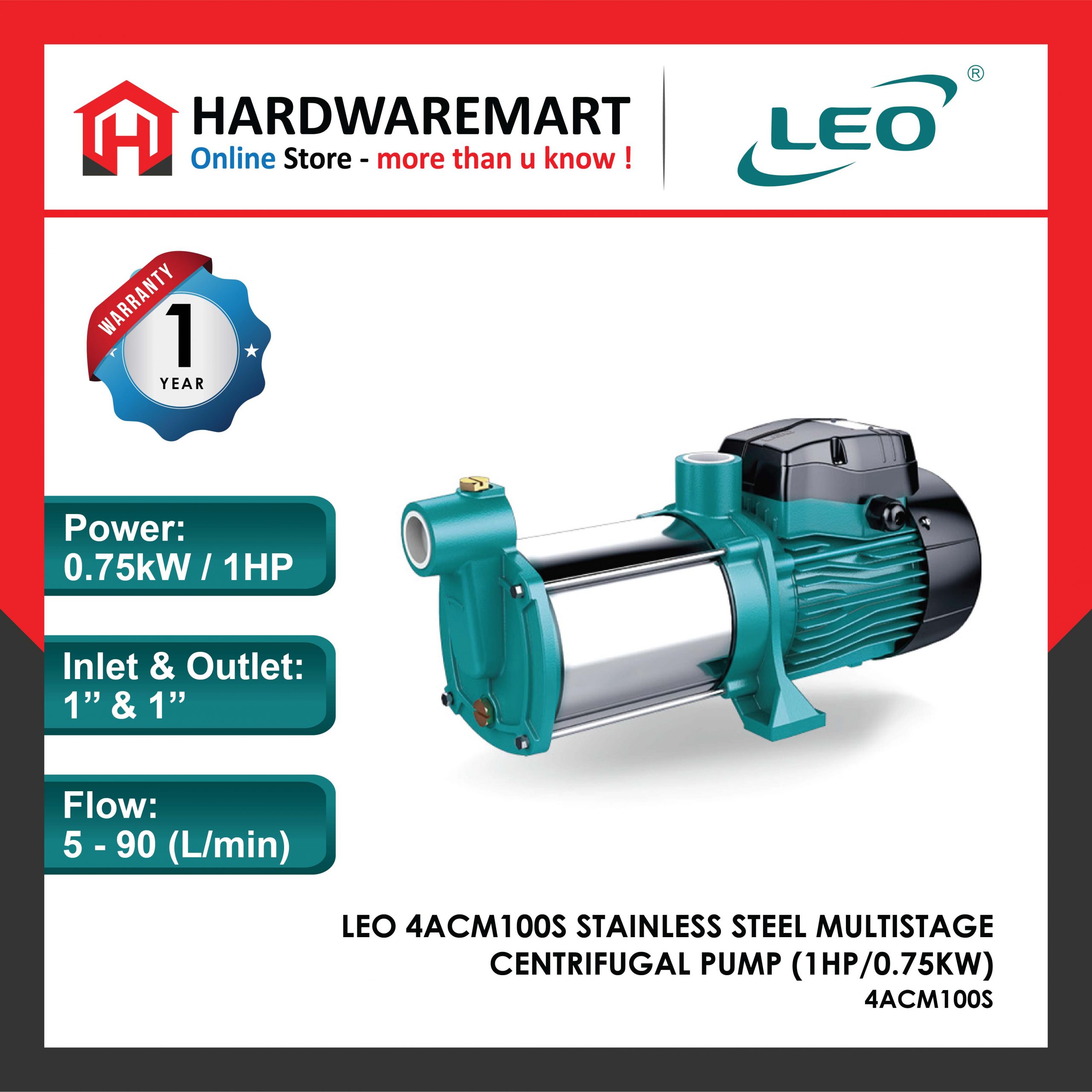

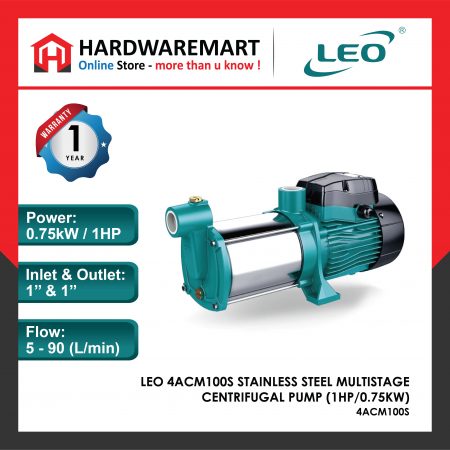

LEO 4ACM100S STAINLESS STEEL MULTISTAGE CENTRIFUGAL PUMP (1HP/0.75KW) [1 phase]

Description

Application:
– Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
– Suitable for industrial use and urban water supply, domestic water supply, high rise buildings, long distance water transfer and related auxiliary equipment etc.

Pump:
– Cast iron pump body and support under special anti-rust treatment
– AISI 304 shaft
– Max. liquid temperature: +60C
– Max. suction: +8m

Motor:
– C&U bearing
– Motor with copper winding
– Built-in thermal protector for single phase motor
– Insulation class: F
– Protection class: IPX4
– Max. ambient temperature: +40C

Model: 4ACM100S
Power: 1HP / 0.75kW
Flow: 5-90 (l/min)
Head: 43.5 – 5m
Max. suction: 8m
Inlet / outlet: 1″ x 1″
