– For water supply from wells or reservoirs
– For domestic use, for civil and industrial applications
– For garden use and irrigation
Operating conditions
– Maximum fluid temperature up to +35°C
– Maximum sand content: 0.25%
– Maximum immersion: 80m
– Minimum well diameter: 3”
Motor and Pump
– Rewindable motor or full obturated screen motor
– Three-phase: 380V-415V/50Hz
– Single-phase: 220V-240V/50Hz
– Pumps are designed by casing stressed
– Curve tolerance according to ISO 9906
Power: 0.75kW / 1HP
Flow: 11-47 L/min
Head: 80m-27m
Max suction: 80m
Outlet: 1’’

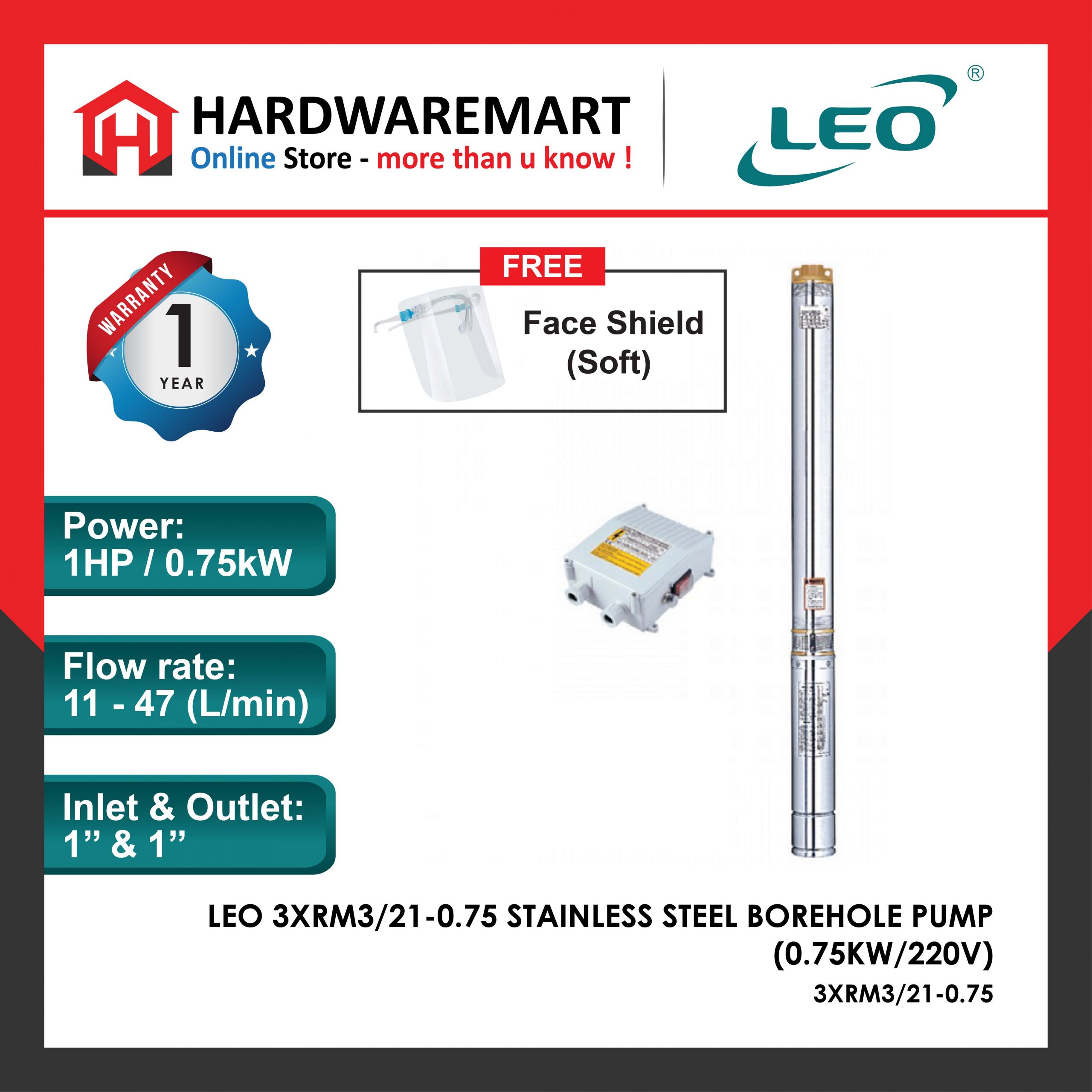

Brand: LEO Pump
